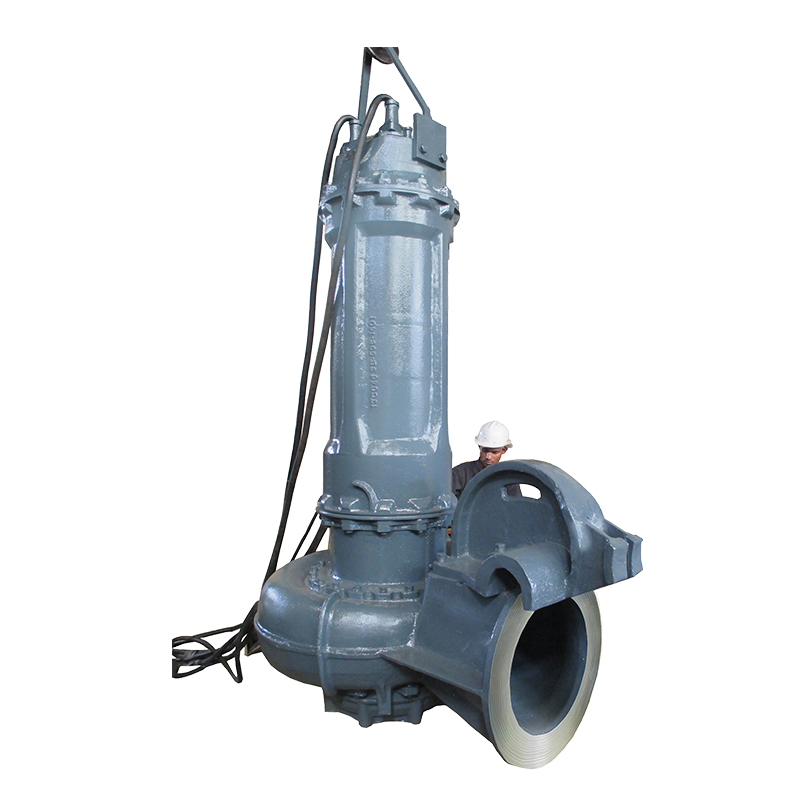

ANS Heavy Duty Non-Clog Sewage Submersible Pump Sets are specially designed to handle wastewater and sewage with solid particles. These pumps are suitable for applications requiring reliable and efficient operation in challenging sewage and drainage systems. The robust construction ensures long life and resistance to clogging, even in the most demanding environments.
Key Features
- Heavy-duty construction for rugged operations
- Non-clog impeller design for handling solids
- High-efficiency motor with thermal protection
- Corrosion-resistant materials
- Easy to install and maintain
- Suitable for continuous duty
- Available with float switch or auto-coupling system
Applications
- Municipal sewage and wastewater treatment plants
- Residential and commercial sewage systems
- Industrial effluent and wastewater disposal
- Sludge handling in food & beverage, textile, and chemical industries
- Stormwater drainage and dewatering
Technical Specifications
| Pump Type | Submersible, Non-Clog |
|---|---|
| Power Range | 1.0 HP to 25 HP |
| Voltage Range | 220V – 415V, 50Hz, 1Ø/3Ø |
| Discharge Range | 50 mm to 150 mm |
| Flow Rate | Up to 1000 LPM |
| Head Range | Up to 40 meters |
| Max Solid Handling | Up to 50 mm |
| Motor Protection | IP68, F-Class Insulation |
| Material of Construction | Cast Iron / Stainless Steel / CI+SS304 |
