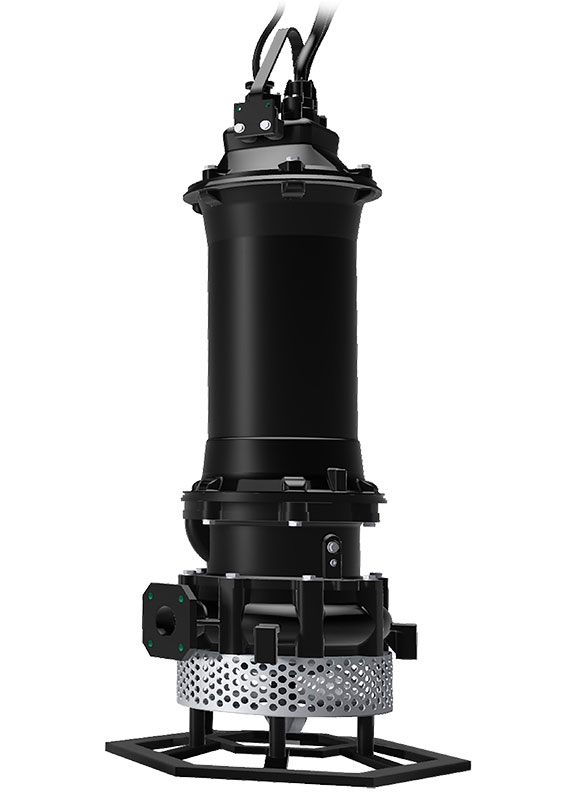

ASS series pumps are specially designed to handle sewage, wastewater, and sludge in municipal and industrial applications. These pumps are non-clog type, robustly built for continuous operation, and suitable for solids-laden liquids. They are available in various material combinations and configurations to ensure durability, reliability, and long service life.
Key Features
- Heavy-duty non-clog impeller design
- Suitable for raw sewage and slurry applications
- IP68 motor protection, suitable for submerged conditions
- F-Class insulation with thermal protection
- Available in cast iron, CI+SS, or full stainless steel construction
- Easy installation and maintenance with guide rail system
- Optional float switch and control panel compatibility
Applications
- Sewage treatment plants
- Drainage and dewatering of flooded areas
- Effluent handling in commercial and industrial sectors
- Slurry and sludge transfer
- Raw water pumping
- Construction site dewatering
- Municipal wastewater systems
Technical Specifications
| Parameter | Value |
|---|---|
| Pump Type | Submersible, Non-Clog |
| Power Range | 1.0 HP to 25 HP |
| Voltage Range | 220V – 415V, 50Hz, 1Ø/3Ø |
| Discharge Range | 50 mm to 150 mm |
| Flow Rate | Up to 1000 LPM |
| Head Range | Up to 40 meters |
| Max Solid Handling | Up to 50 mm |
| Motor Protection | IP68, F-Class Insulation |
| Material of Construction | Cast Iron / Stainless Steel / CI+SS304 |
