Oil Gauge - OLG
- Guage: Borosilicate Glass
- CCD: 70–300 mm
- Max Temp: 100°C
- Max Pressure: 1 Kg/cm²
- MOC: CS

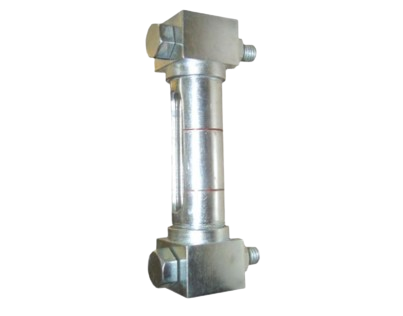

Mini Tubular - MTTG
- Guage: Borosilicate Glass
- CCD: 100–400 mm
- Max Temp: 100°C
- Max Pressure: 10 Kg/cm²
- MOC: SS304/316

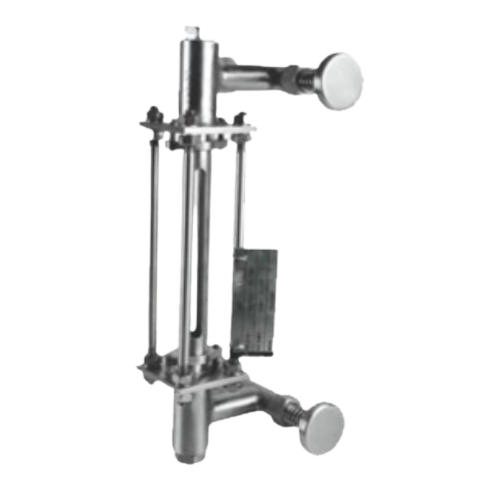

Tubular - TTG
- Guage: Borosilicate Glass
- CCD: 400–1500 mm
- Max Temp/Pr: 200°C / 10 Kg/cm²
- MOC: CS, SS304/316, PP
- Construction: 'C' Channel or Tie rod, Options: Autoball check, Frost Free Extn, Illuminator, steam jacketing
Tubular - TTG (Marine)
- Guage: Borosilicate Glass
- CCD: 400–1500 mm
- Max Temp/Pr: 200°C / 10 Kg/cm²
- MOC: CS, SS304/316
- Construction: 'C' Channel or Tie Rod
- Isolating Valves: Spring Loaded or Weighed Lever

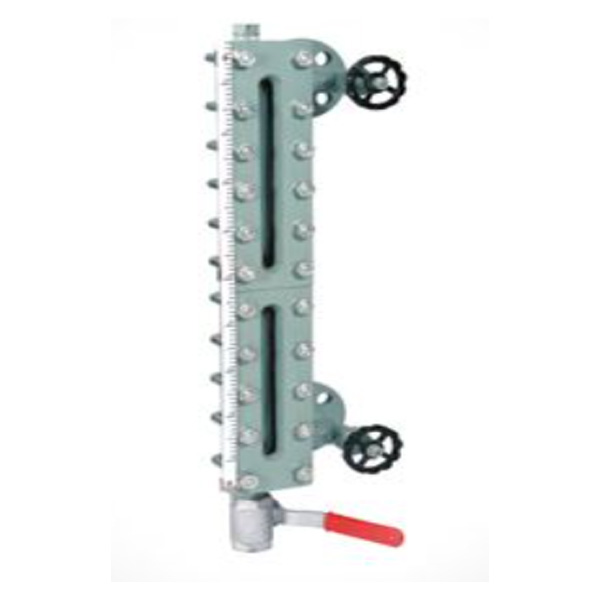

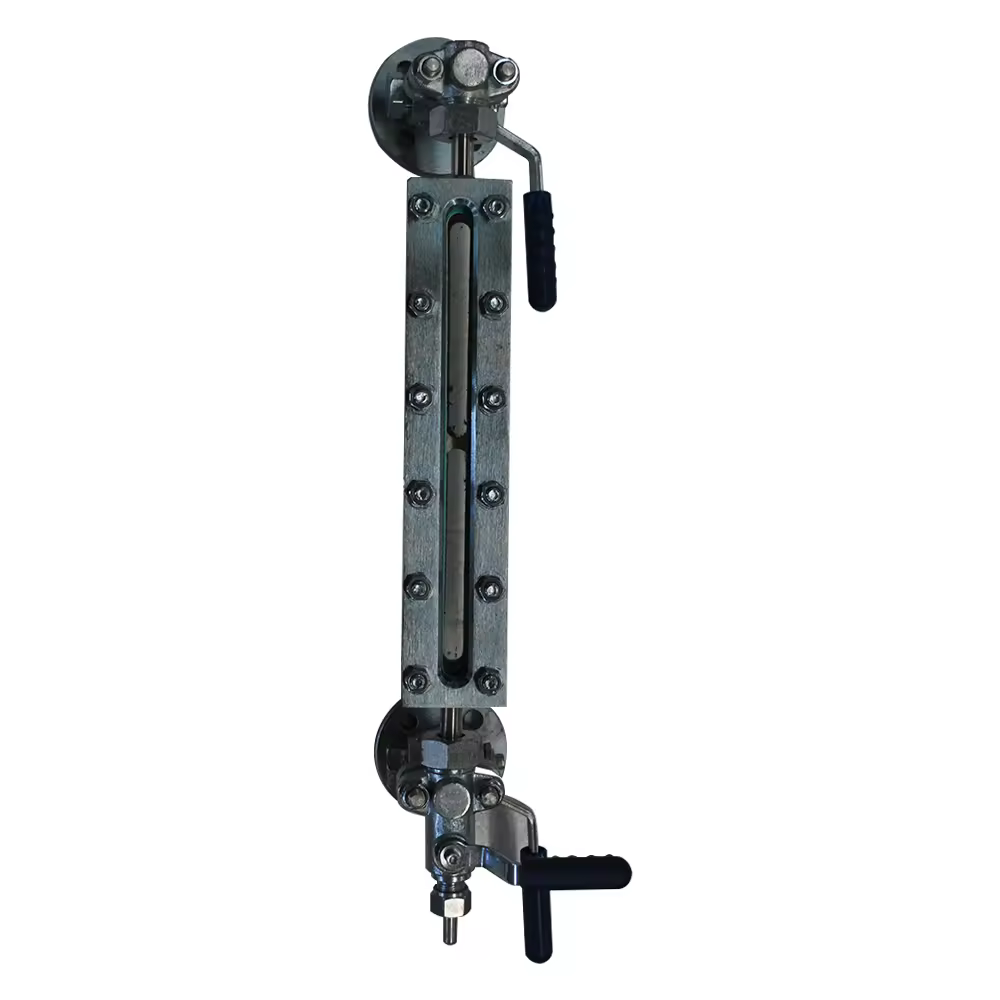

Reflex - RFG
- Guage: Soda Ash/Borosilicate Glass
- CCD: 170–2000 mm
- Max Temp: 400°C / 210 Kg/cm²
- MOC: CS, SS316, PP, PVDF
- Options: Autoball check, Frost Free Extn, Illuminator, steam jacketing
Reflex - RFG (Marine)
- Guage: Soda Ash/Borosilicate Glass
- CCD: 170–2000 mm
- Max Temp/Pr: 400°C / 210 Kg/cm²
- MOC: CS, SS304/316
- Isolating Valves: Spring Loaded or Weighted Lever
.png)
Transparent - TFG
- Gauge: Soda Ash or Borosilicate Glass
- CCD: 170–2000 mm
- Max Temp/Pr: 400°C / 210 kg/cm²
- MOC: CS, SS304/316, PP
- Options: Autoball check, Frost free Extn, Illuminator, Steam Jacketing
.jpeg)
Weld Pad - WFG
- Guage: Soda Ash or Borosilicate Glass
- CCD: 205–600 mm
- Max Temp: 300°C
- Max Pressure: 72 Kg/cm²
- Wtd Parts: CS, SS304/316

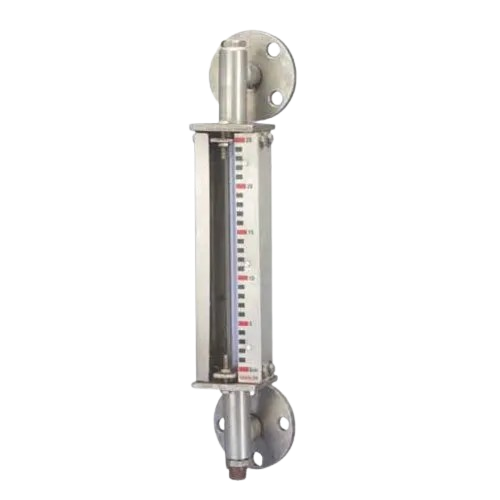

Magnetic - MLG
- CCD: 300–5000 mm
- Liquid SG: 0.7
- Max Temp/Pr: 400°C - 300kg/cm²
- Indicator: Capsule or bicolor rollers with IP65 or Hermetic Sealing
- Options: Alarm Switches (max 4), X'mitter, RS485, HART, Jacketing
Magnetic - MLG (Marine)
- CCD: 300–5000 mm
- Liquid SG: 0.7
- Max Temp/Pr: 400°C / 300 Kg/cm²
- MOC: SS304/316
- Indicator: Capsule or bicolor rollers with IP65 or Hermetic Sealing
- Options: Alarm Switches (max 4), X'mitter, RS485, HART
- Isolation Valve: Weighted Lever
Float & Board - FBG
- Range: 1–10 mtrs
- Liquid SG: 0.8
- Max Temp/Pr: 150°C / Atm
- MOC: SS304/316, PP
- Gauge Board: Aluminium
- Options: Sealpot, Alarm Switches (max 4)
Float & Dial - FDG (Analog)
- Range: 1–10 mtrs
- Liquid SG: 0.8
- Max Temp/Pr: 100°C / Atm
- MOC: SS304/316, PVDF ctd
- Enclosure: Cast AL * IP66
- Options: Alarm switches (max 2), X'mitter
Float & Dial - FDG (Digital)
- Range: 1–10 mtrs
- Liquid SG: 0.8
- Max Temp/Pr: 100°C / Atm
- MOC: SS304/316, PVDF ctd
- O/P: 4-20mA (4 wire)
- Enclosure: Cast Al. IP66 or Ex d Gr.IIB

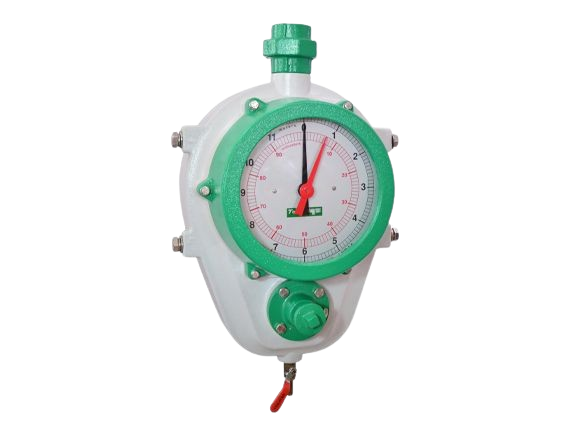

Float & Tape - FTG
- Range: 4–20 mtrs
- Liquid SG: 0.8
- Max Temp/Pr: 120°C / Atm
- MOC: SS316
- Enclosure: Cast AL * IP65
- Options: Alarm switches (max 2), X’mitter, Counter
Magnetic Float Dial - MFDG
- Range: 200–1200 mm
- Liquid SG: 0.8
- Max Temp/Pr: 100°C / 4 Kg/cm²
- MOC: SS304, PU
- Enclosure: Cast AL * IP66
- Options: Alarm switches (max 2)

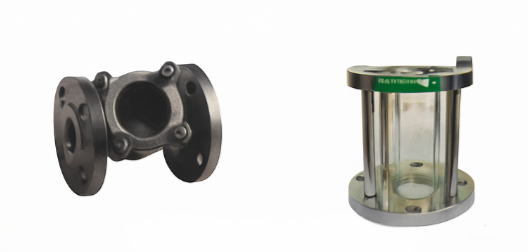

Sight Glass - TSG(F), TSG(D)
- Types: Full view (F), Double Window (D)
- Gauge Glass: Toughened Borosilicate
- MOC: CS, A 105, SS304/316 (F,D Type) PP (F Type)
- Max Temp: 150°C
- Max Pressure: 10 Kg/cm²
- Flange Size: 15 to 100 NB
