Level Switches For Liquids

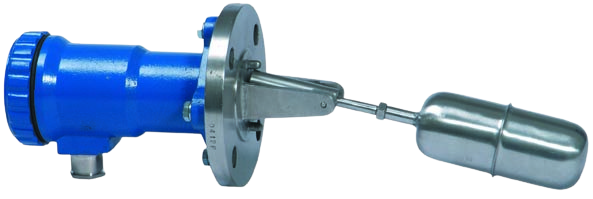

Float pivoted – FPS

Float Pivoted – FPS

  • Liquid SG: 0.6
  • MOC: SS304/316, PP, PVDF
  • Contacts: 5A, 250VAC x SPDT/DPDT
  • Enclosure: Cast Al * IP66 or Ex d IIB/IIC or ATEX
  • Temp: 350°C
  • Max Pressure: 20 Kg/cm²

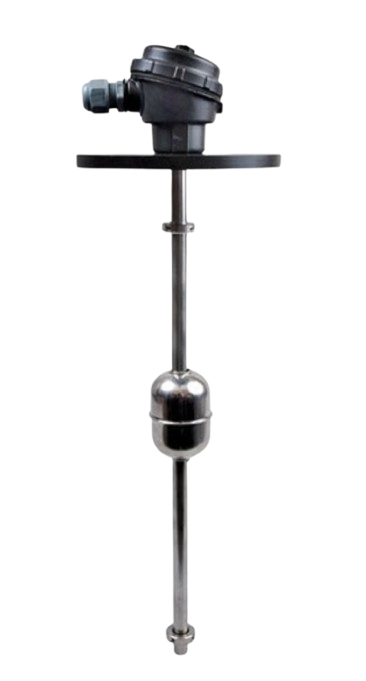

Float Guided – FGS

Float Guided – FGS

  • Range: 100–3000 mm
  • Liquid SG: 0.65
  • Max Temp/Pr: 125°C / 10 kg/cm²
  • MOC: SS304/316, PP, PVDF
  • Contacts: 40/120VA (NO), 60VA (C/O)
  • Enclosure: Cast AL * IP66 or Ex d IIB/C or ATEX
  • Present Levels: 1–4 (Single or multiple floats)
Float Side Mounted – FPS

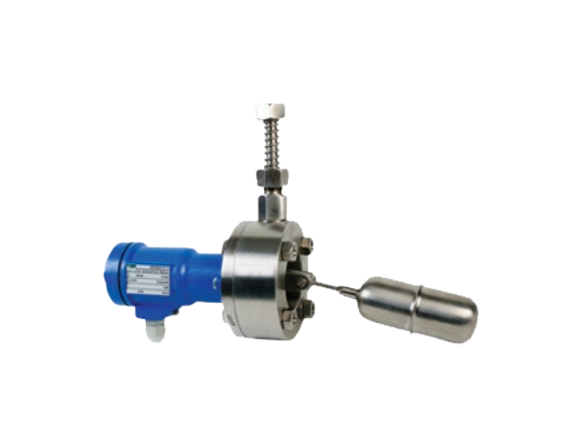

Float Pivoted – FPS (Marine)

  • Liquid SG: 0.6
  • MOC: SS304/316
  • Contacts: 5A, 250VAC × SPDT/DPDT
  • Enclosure: Cast AL × IP66 or Ex d IIB/C or ATEX
  • Max Temp: 350°C
  • Max Pressure: 20 Kg/cm²

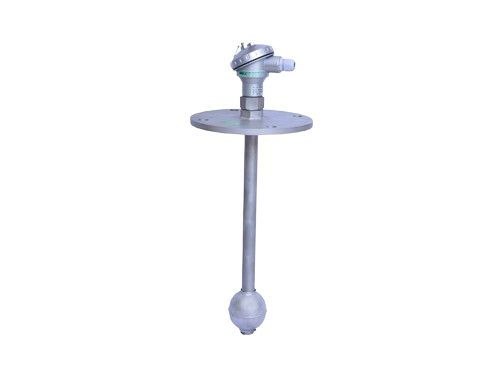

Float Flanged – FGS

Float Guided – FGS(Marine)

Range:100-3000mm

Liquid SG: 0.6

Max Temp/Pr:125°C/10kg/cm²

MOC: SS304/316, PP,PVDF

Contacts: 40/120VA(NO), 60VA(C/O)

Enclosure:Cast AL*IP66 or Ex d IIB/C or ATEX

Present Levels:1-4(Single or multiple floats)

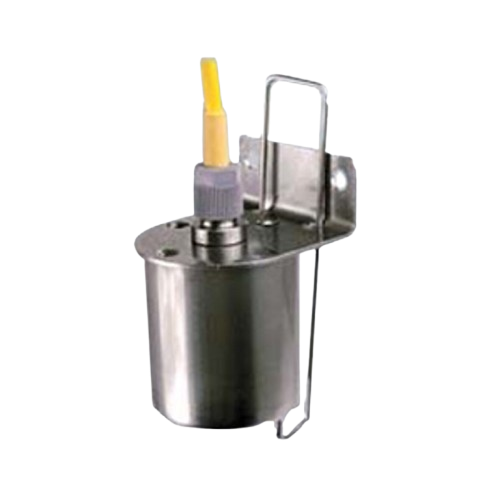

Bilge-TBS

Bilge-TBS (Marine)

  • Liquid SG: 0.8
  • Max Temp:100°C
  • Max Pressure: 10 kg/cm²
  • MOC: SS316, PP, PVDF
  • Contacts: 60VA* SPDT Reed Switch

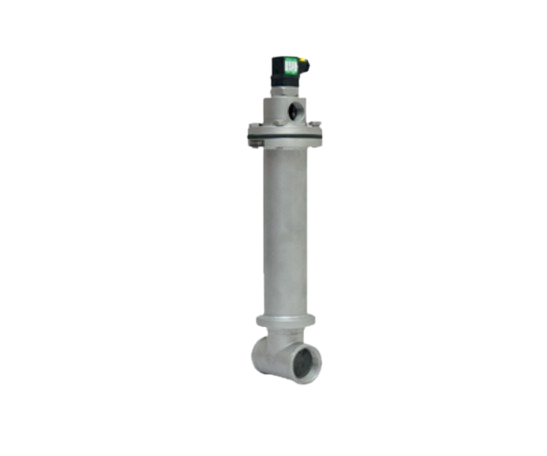

Water Alarm Gadget – TWAG

Water Alarm Gadget-TWAG

  • Liquid SG: 0.7
  • Max Temp:80°C
  • Max Pressure: 10 Bar
  • MOC: SS304,Borosilicate Glasss
  • Termination:Plug in connector
  • Contacts: 60VA* 2SPDT

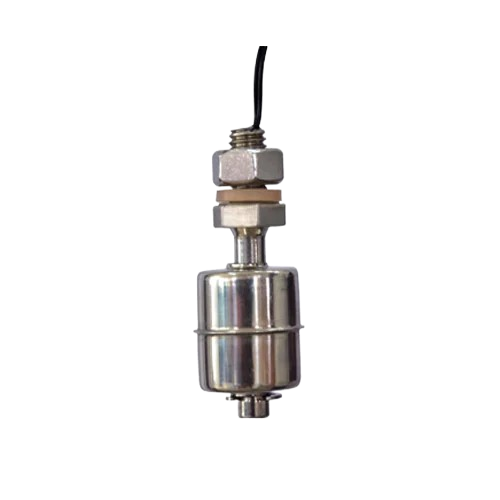

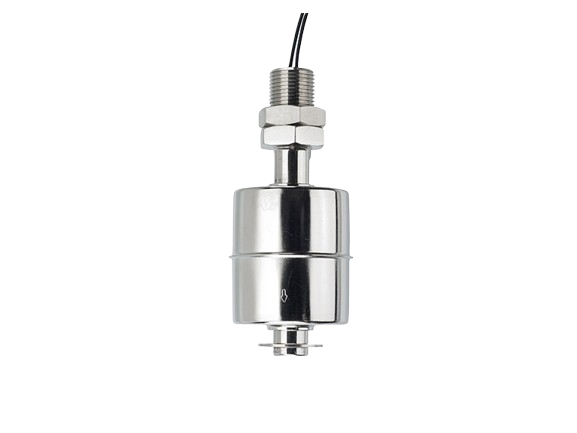

Mini float guided-MFGS

Mini Float Guided-MFGS

  • Liquid SG: 0.7
  • Max Temp:130°C
  • Max Pressure: 5kg/cm²
  • MOC: SS304,PP
  • Contacts: 10VA*Reed Switch
  • Mounting:Top or Side

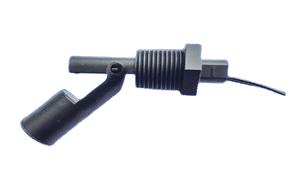

    • Mini float guided-MFPS

    Mini Float Guided-MFPS

  • Liquid SG: 0.7
  • Max Temp:130°C
  • Max Pressure: 5kg/cm²
  • MOC: SS304,PP
  • Contacts: 10VA*Reed Switch
  • Mounting: Side

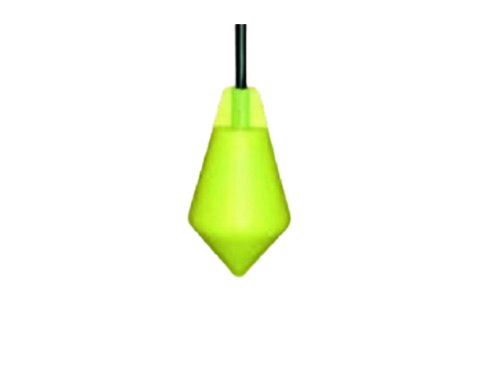

    • Cable Suspended Floats - FTS

    Cable Suspended Floats - FTS

    • Range: 0.2–15 mtrs
    • Liquid SG: 0.75
    • Float: PP Biconical
    • Cable: 3 core, 1mm², Neoprene
    • Max Temp/Pr: 3.5 kg/cm²
    • Contacts: 8A, 250VAC SPDT – Used in regular tanks
    Cable Suspended Floats - FTS

    Cable Suspended Floats - FTS

    • Range: 0.2–15 mtrs
    • Liquid SG: 0.75
    • Float: PP Biconical
    • Cable: 3 core, 1mm², Neoprene
    • Max Temp/Pr: 3.5 kg/cm²
    • Contacts: 8A, 250VAC SPDT – Used in regular tanks

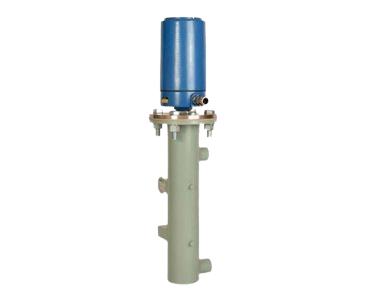

    Chamber Float-CFS

    Chamber Float-CFS

    • CCD: 200-400mm
    • Liquid SG:0.8
    • Max Temp/Pr: 300°C/10kg/cm²
    • MOC:CS,SS304/316
    • Contacts: 5A,250VAC*2 SPDT
    • Enclosure: Cast AL*IP66,Ex d IIC,ATEX

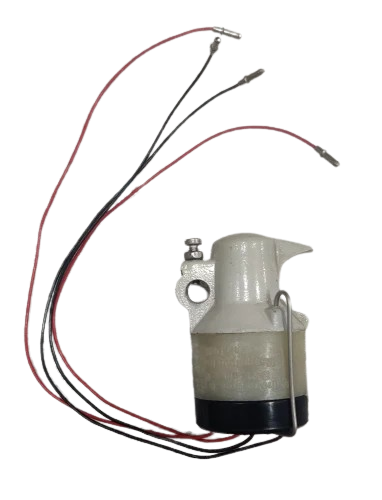

    Spare Airbreak Switch for VLC

    Spare Airbreak Switch for VLC

    • Type: Airbreak
    • Contacts: SPDT,5A,250VAC
    • Switch Action: Bi-stable
    • Terminals: Suitable for 2.5mm² cable

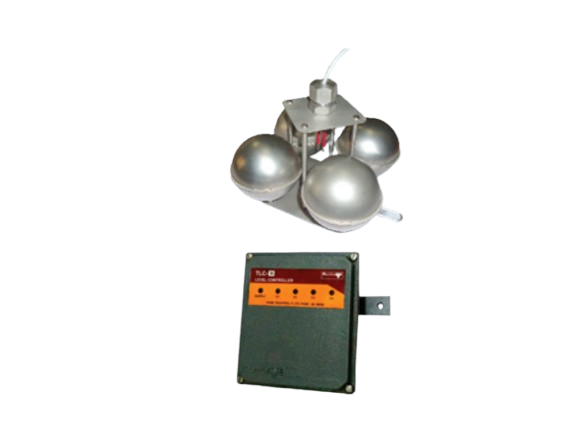

    Floating Contamination Detector-FCCD

    Floating Contamination Detector-FCCD

    • Range: upto 10 mtrs
    • Liquid Conductivity: 25us
    • Max Temp/Pr: 80°C/ATM
    • MOC: SS316
    • O/P: 5A,250VAC*SPDT
    • Enclosure:Cast Al*IP66
    High Temp Float Switch-HTFS

    High Temp Float Switch-HTFS

    • Insertion Length: 300mm
    • MOC:SS316
    • Contacts:40VA*Reed Switch
    • Preset Level:One
    • Max Temp: 200°C
    • max Pressure:10Kg/cm²

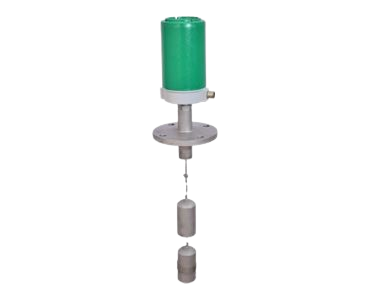

    Displacer-DS

    Displacer-DS

    • Range: 0.2-15mtrs
    • Liquid SG:0.8
    • Max Temp/Pr:300°C/ 40kg/cm²
    • MOC:SS304/316,PP,PVDF
    • Contacts:Cast Al*lP66,Ex d llB/C,ATEX
    • Present Levels:One to four

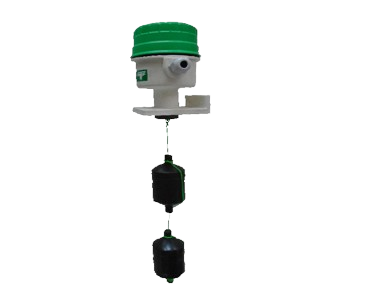

    Compact Displacer Switch-CDS

    Compact Displacer Switch-CDS

    • Range: 0.5-3mtrs
    • Liquid SG:1
    • Max Temp/Pr:70°C/Atm
    • MOC:PP
    • Contacts:5A,250VAC * SPDT
    • Enclosure:PP * WP

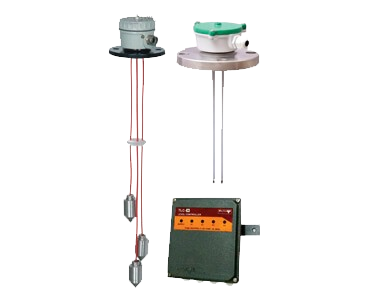

    Conductivity-CNS

    Conductivity-CNS

    • Range: 0.1-10mtrs
    • Liquid Conductivity:25us
    • Max Temp/Pr:100°C/5 kg/cm²
    • MOC:SS304/316
    • Contacts:5A,250VAC * SPDT
    • Enclosure:Cast Al*lp66 or Exd llB

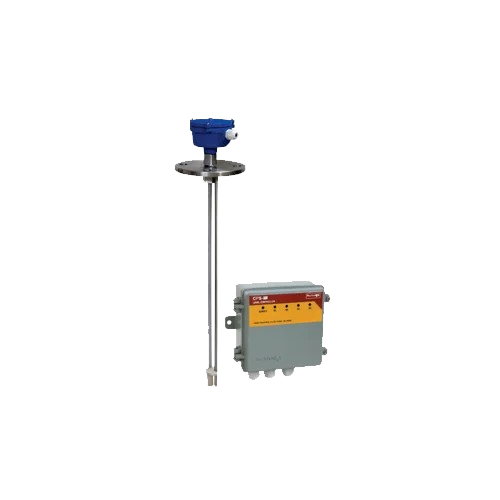

    Capacitance-CPS

    Capacitance-CPS

    • Range: 0.2-5mtrs
    • Dielectric Constant:1.8
    • Max Temp/Pr:60°C/5 kg/cm²
    • MOC:SS304/316
    • Contacts:5A,250VAC * SPDT
    • Enclosure:Cast Al*lP65

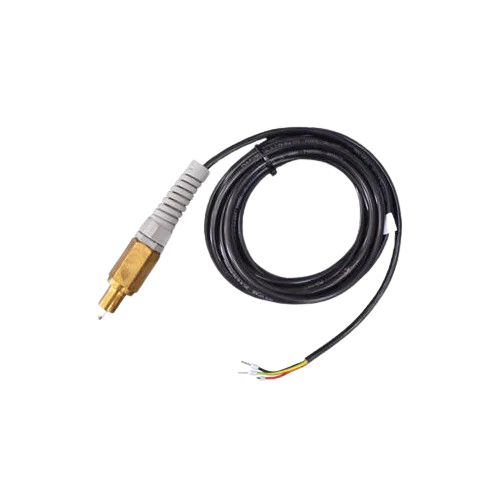

    Conductivity Contamination Sensor-CCS

    Conductivity Contamination Sensor-CCS

    • MOC: Brass
    • O/P:PNP
    • Protection:IP68
    • Mounting:Top,Side or Bottom
    • Max Temp:80°C
    • Max Pressure:3kg/cm²
    Level Switch Unitrol

    Level Switch - Unitrol

    • MOC: SS304,SS316L
    • InsulationPEEK
    • Max Temp:150°C
    • Max pressure:100 bar
    • Dielectric Constant:2
    • Protection:IP68

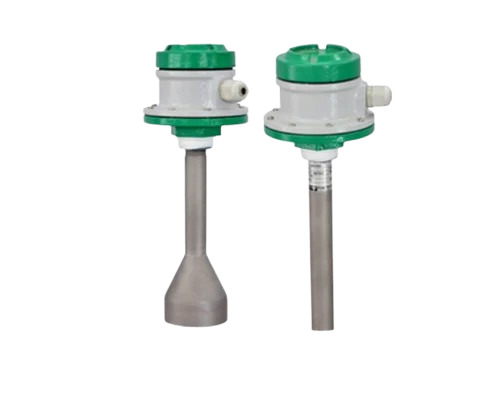

    Air Diaphragm-ADS

    Air Diaphragm-ADS

    • Range: 0.2-2mtrs
    • Max Temp/Pr:60°C/Atm
    • MOC:PP,SS316
    • Contact:5A,250VAC*SPDT
    • Enclosure:Cast Al*IP66

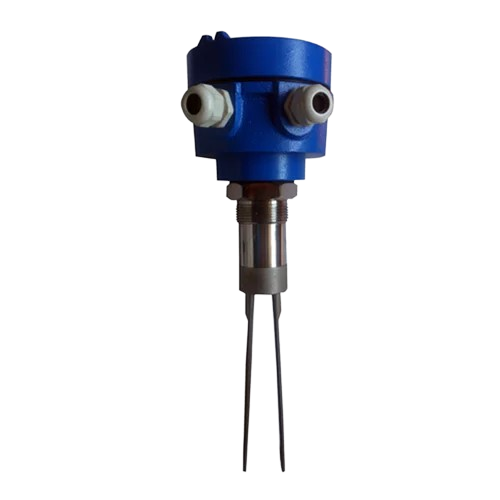

    Vibrating Fork-VFSL

    Vibrating fork-VFSL

    • Insertion:125-2500mm
    • Liquid Density:0.5g/cm³
    • Max Temp/Pr:150°C/10kg/cm²
    • MOC :SS304/316
    • Enclosure:Cast Al*lP66 or Exd llB
    • Options:Integral, Two Part

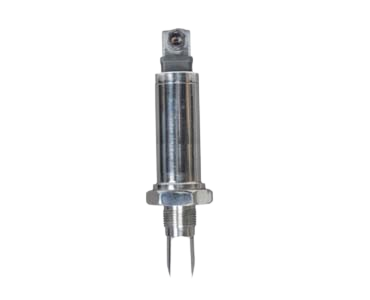

    Mini Vibrating Fork-MVFSL

    Mini Vibrating Fork-MVFSL

    • Insertion:69mm
    • Liquid Density:0.5g/cm³
    • Max Temp/Pr:150°C/10kg/cm²
    • MOC:316
    • Termination:DIN Connector
    • O/P:PNP
