ENCON
EQUIPMENTS
Pvt. Ltd
Level Switches For Solid

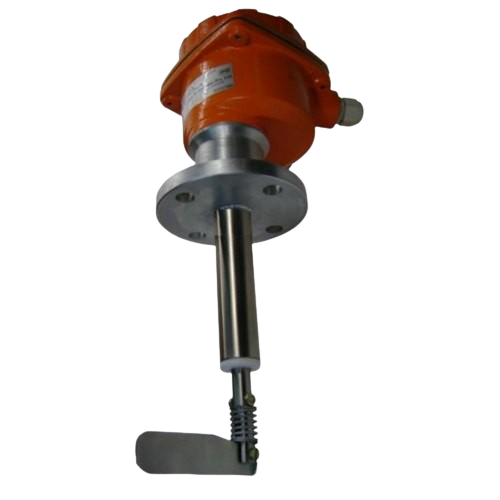

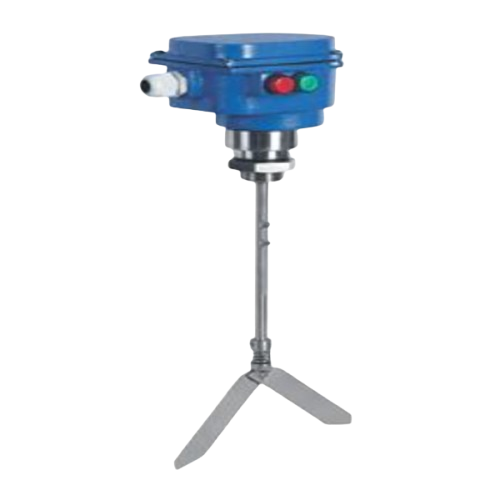

Rotary Paddle-RPLS
- Insertion:200-1500mm
- Bulk Density:0.5g/cm³
- MOC:SS304
- Max Temp:150°C
- O/P:5A,250VAC*SPDT or DPDT
- Enclosure:Cast Al * lP66
High Temp Paddle Switch-HTPS
- Insertion Length:200-300mm
- Bulk Density:0.5g/cm³
- Max Temp/Pr:200°C/Atm
- MOC:SS304
- Enclosure:Cast Al*lP66
- O/P:5A,250VAC* SPDT OR DPDT

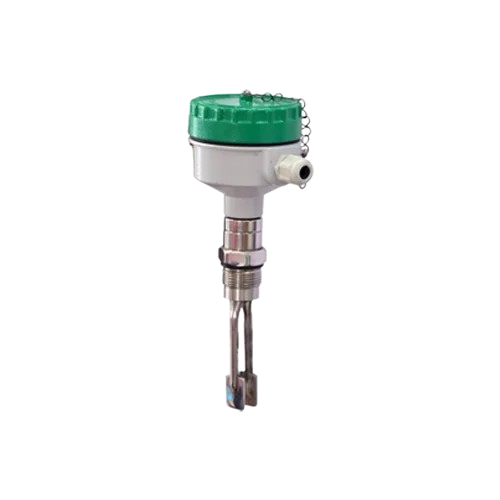

vibrating Fork-VFSS
- Insertion:200-2500mm
- Bulk Density:0.5g/cm³
- MOC:SS304 /316
- Max Temp:200°C/10kg/
- O/P:5A,250VAC*SPDT or DPDT
- Enclosure:Cast Al * lP66
Vibrating Diamond Blade
- Insertion:173-6000mm
- Bulk Density:20g/L
- MOC:SS304
- Max Temp:150°C
- Max Pressure:10 Bar
- Contacts:8A, 250VAC*SPDT
- Enclosure:Cast Al * lP66/67,Exd llB or ATEX

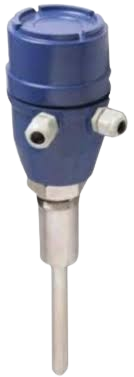

Vibrating Rod-VRS
- Insertion Length:250mm
- Bulk Density:0.5g/cm³
- MOC:SS304
- Max Temp:125°C
- Max Pressure:10 Bar
- O/P:Relay 2*SPDT

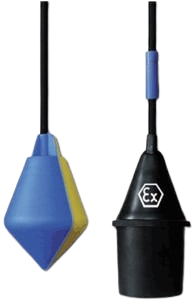

Cable Suspended float-FTSS
- Range:5-30 mtrs
- Float MOC:PP+ HR HY
- Cable:3 core,1mm2,Neoprene/ Hypalon
- Max Temp:70°C
- Contacts:8A,250VAC,10mA 24VDC/AC,SPDT

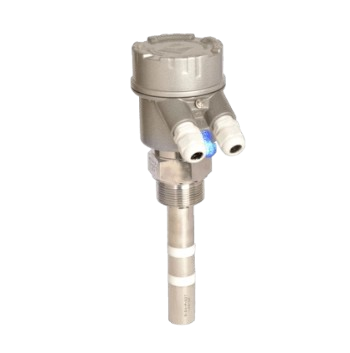

RF Admittance-RFA
- Insertion Length:350-3000 mm
- Dielectric Constant:2
- MOC:SS304/316
- Max Temp/Pr:200°C/10kg/cm²
- Enclosure:Cast Al*lP66 or Exd llB
- O/P:5A,250VAC * DPDT
- Options:Integral,Two Part

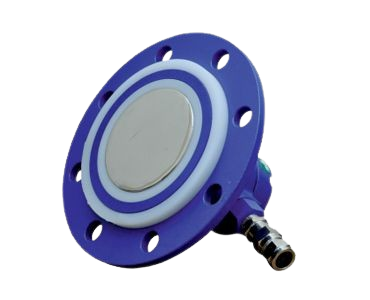

Disc RF Admittance-DRFA
- Dielectric Constant:2
- MOC:SS304
- Max Temp:200°C
- Enclosure:Cast Al*lP66
- O/P:5A,250VAC * DPDT
×
![]()
