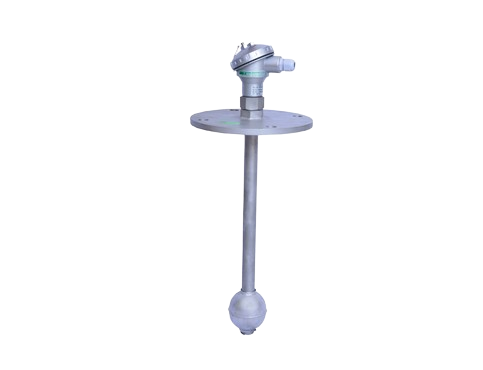

Magnetic Float guided-FGT
- Range:400-4000mm
- Liquid SG:0.6
- MOC:SS304/316,PP,PVDF
- Max Temp/Pr:150°C/10kg/cm²
- O/P:4-20mA,RS 485,HART
- Enclosure:Cast Al.lP66 or Ex dllB/C or ATEX

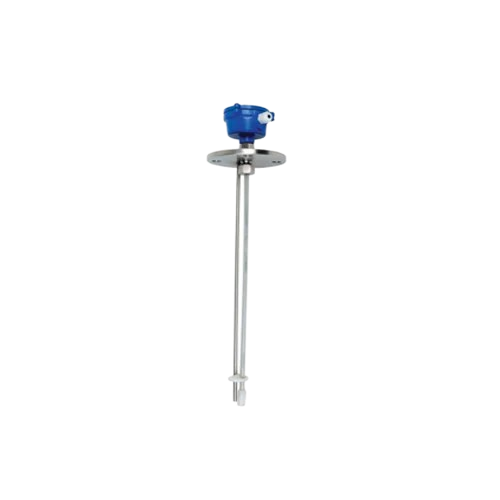

Capacitance-CPT
- Range:500-5000mm
- Dielectric Constant:1.8
- MOC:SS304/316
- Max Temp/Pr:60°C/5kg/cm²
- O/P:4-20mA
- Enclosure:Cast Al*lP66

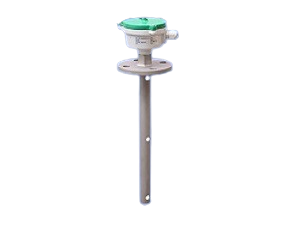

Capacitance Fuel-CFT
- Range:200-1000mm
- Dielectric Constant:1.8
- MOC:SS304/316
- Max Temp/Pr:60°C/2kg/cm²
- O/P:4-20mA,Rs485
- Enclosure:Cast Al*lP66

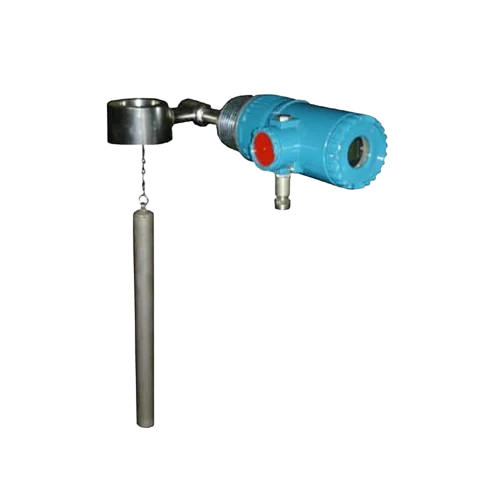

Displacer with Torque Tube-DTT
- Range:300-3000mm
- Liquid SG:0.6
- MOC:SS316
- Max Temp/Pr:400°C/60kg/cm²
- O/P:4-20mA
- Enclosure:Cast Al*lP66 or Exd llC T6 or ATEX

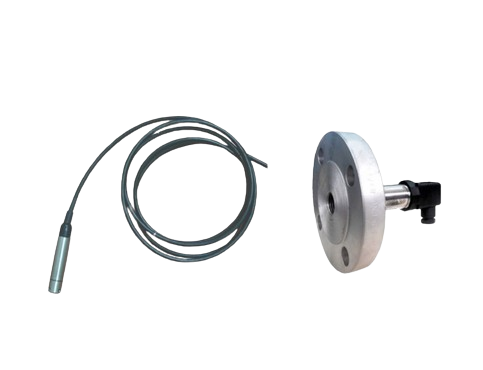

Hydrostatic-HLT
- Range:2,3,5....100mWC
- MOC:SS316 probe,PU cable
- Max Temp/Pr:70°C/Atm
- O/P:4-20mA
- Probe:SS316*lP68
- Termination:Cable or Enclosure lP65 or Plug in Connector

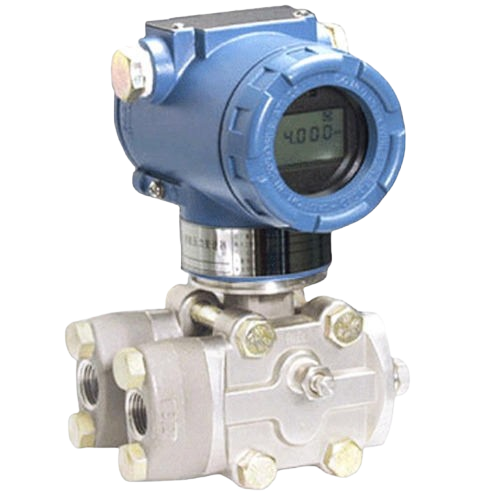

Differential pressure-DPT
- Range:0.001-210 bar
- MOC:SS316L,Hastalloy,Monel
- Max Temp:104°C
- O/P:4-20mA+HART
- Enclosure:Cast Al*lP65
- Over pressure:1.5 * range

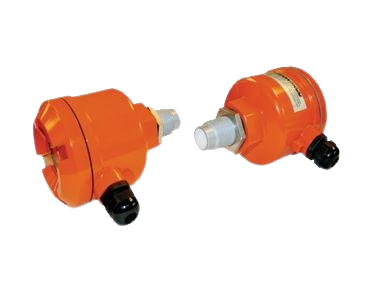

Microwave Level Switch-MWS
- Range:upto 40mtrs
- Max Temp:55°C
- Max pressure:5 Bar
- O/P:2A, 30VDC * SPDT
- Enclosure:Cast Al*lP65

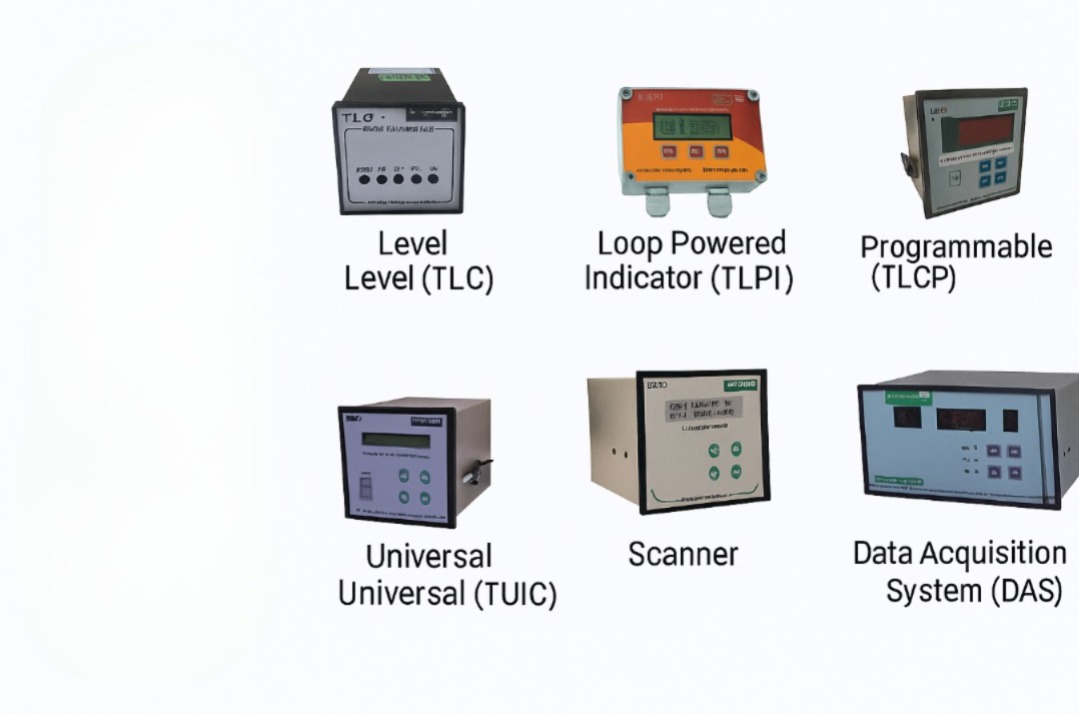

Techtrol Display Instruments
- Range:upto 40mtrs
- Max Temp:55°C
- Max pressure:5 Bar
- O/P:2A, 30VDC * SPDT
- Enclosure:Cast Al*lP65

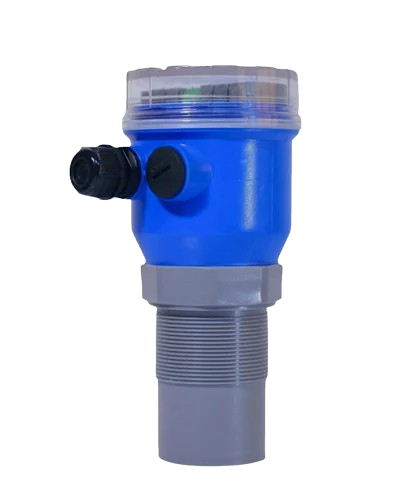

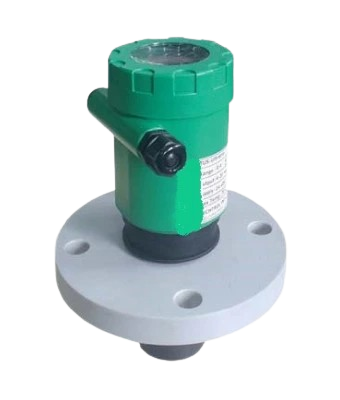

Ultrasonic Transmitter-Ultratrol
- Ranges:5, 10 or 12mtrs(Integral)
- Max Temp:70°C
- Max pressure:<1 Bar
- O/P:4-20mA
- Enclosure:ABS*lP65
- X'ducer:Glass reinforced nylon 66
Ultrasonic Transmitter Ultra XR
- Range:20mtrs
- Max Temp:70°C
- Max pressure:<1 Bar
- O/P:4-20mA
- Enclosure:Aluminium lP 65
- X'ducer:PVC

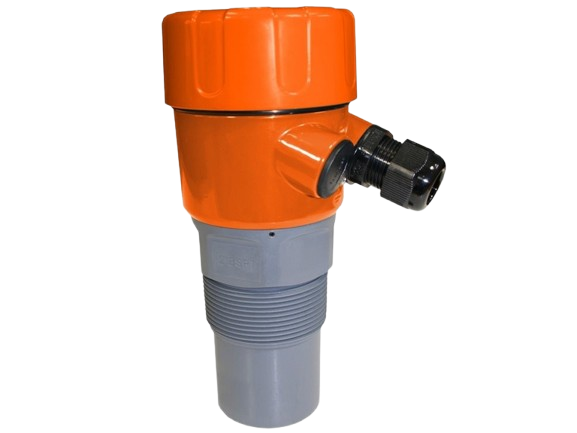

Ultrasonic Transmitter -Microflex DB,DBER
- Ranges:8mtrs(Integral)
- Max Temp:60°C
- Max pressure: 3 Bar
- O/P:4-20mA + HART
- Enclosure:Pwdr Ctd Al * lP67
- X'ducer:PVDF
Ultrasonic Transmitter -Ultranxt
- Ranges:12mtrs(Integral)
- Max Temp:60°C
- Max pressure: 3 Bar
- O/P:4-20mA +HART
- Enclosure:Pwdr Ctd Al * lP67
- X'ducer:PVDF

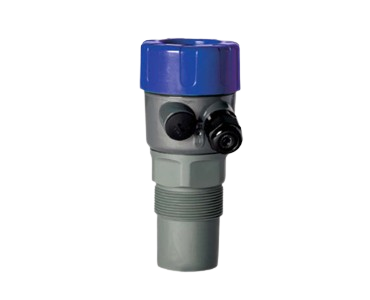

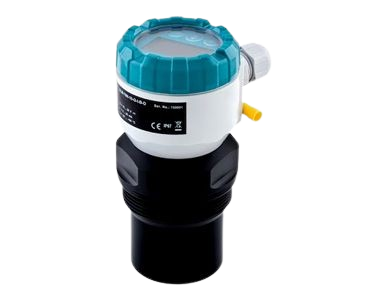

Ultrasonic Transmitter-UltraXl
- Ranges:6,10 mtrs(Integral)
- Max Temp:60°C
- Max pressure: 1 Bar
- O/P:4-20mA + HART
- Enclosure: Al * lP67
- X'ducer:PVDF

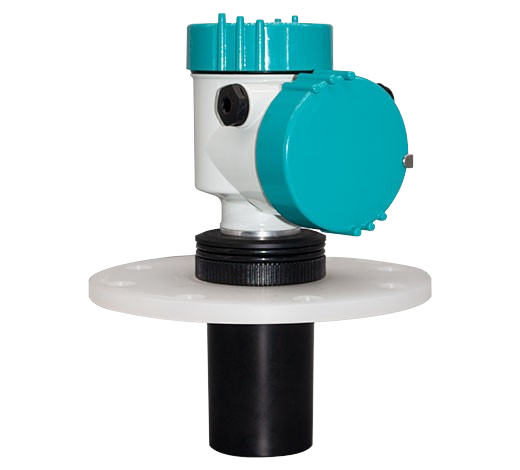

Ultrasonic Transmitter -UltraLR
- Ranges:20mtrs(Integral)
- Max Temp:60°C
- Max pressure: 1 Bar
- O/P:4-20mA + HART
- Enclosure: Al * lP67
- X'ducer:PVDF
×
![]()
