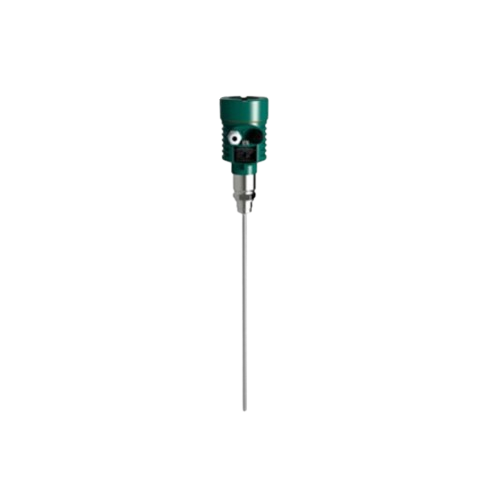

G-TROL(TDR)
- Range:upto 30mtrs (Liquids &Solids)
- Dielectric Constant:1.9
- MOC:SS304/316,PTFE
- Max Temp/Pr:250°C/20 Bar
- O/P:4-20mA
- Enclosure:Cast Al*lP67
TRG 11(TDR)
- Range:upto 20mtrs (Liquids &Solids)
- Dielectric Constant:1.6
- MOC:SS316L
- Max Temp/Pr:100°C/16 Bar
- O/P:4-20mA
- Enclosure: Al*lP67 or ATEX
TRG 22 (TDR)
- Range: up to 40mtrs(Liquids & solids)
- Dielectric Constant: 1.1
- Max Temp/Pr: 300°C / 40 Bar
- MOC: SS316L
- O/P: 4–20 mA + HART
- Enclosure:Al * lP67 or ATEX
Introl
- Range: up to 30mtrs(Liquids & Solids)
- Dielectric Constant: 2.5
- Max Temp/Pr: 250°C / 40 Bar
- Antenna: Horn(SS), Sealed Rod(PVDF)
- O/P: 4–20 mA ,or 4-20mA HART or RS485
TRF 64
- Range: upto 100mtrs(solids)
- Dielectric Constant: 1.4
- Temp/Pr: 130°C / 16 Bar
- Antenna: PP/PTFE(Drop), SS316L(Horn)
- O/P: 4–20 mA + HART
- Enclosure:Al * lP66/68 ATEX
TRF 65
- Range: up to 100mtrs(Solids)
- Dielectric Constant : 1.4
- Temp/Pr: 150°C / 40 Bar
- Antenna: PEEK
- O/P: 4–20 mA + HART
- Enclosure:Al * lP66/67
TRF 73
- Range: upto 80mtrs(Liquids & Solids)
- Dielectric: 1.5
- Temp/Pr: 200°C / 40 Bar
- Antenna: PEEK, PTFE(Drop), SS316L(Horn)
- O/P: 4–20 mA + HART
- Enclosure:Al * lP66/67 ATEX
Laser Transmitter (AL40/100)
- Range: upto 40,100mTRS(Solids)
- Beam Angle: 1°
- Temp: 80°C
- Max Pressure: Atm
- O/P: 4–20 mA
- Enclosure:Al pwdr ctd lP65
